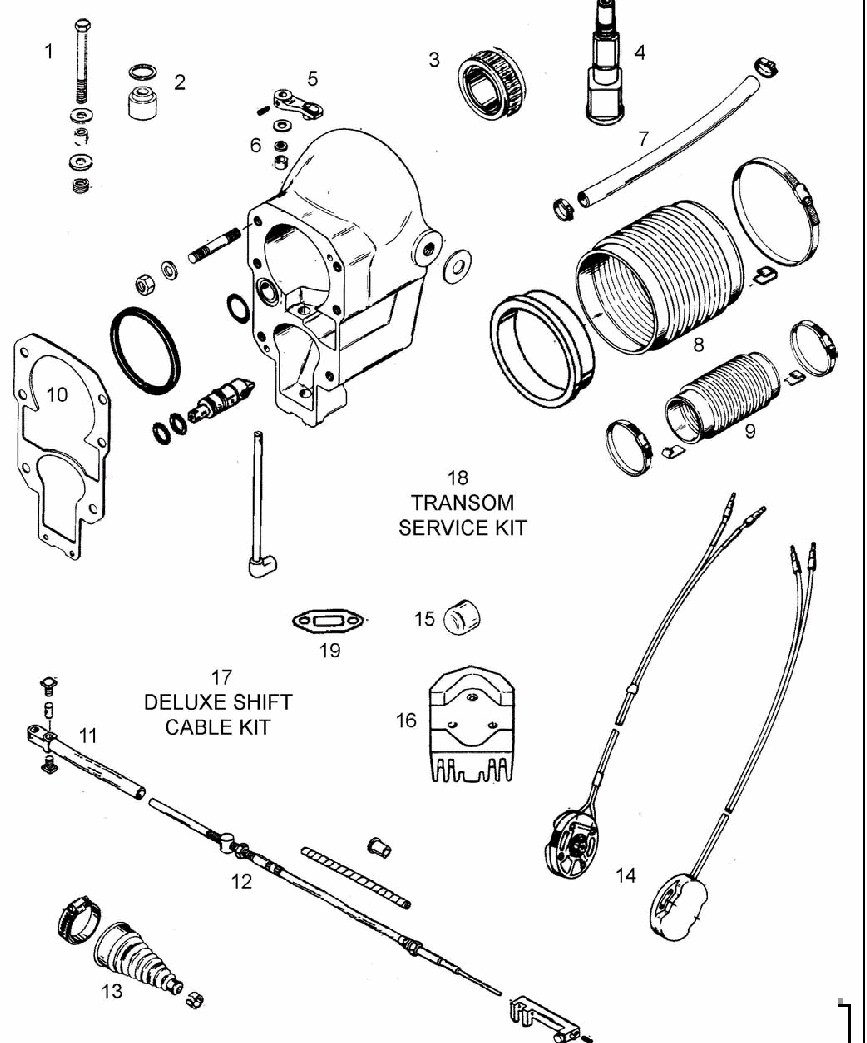

MerCruiser Alpha Gen II Bell housing and Transom See reference picture below! 1991 & later |
||||
| Reference Number
see chart below |
Type | OE# | Part# | Click here to view
product, price, or  |
| 1 | Rear mount bolt Kit | 814819A 2 | 18-2141 | |
| 2 | Rear mount | 99297A 1 | 65297 | |
| 3 | Gimbal Bearing | 30-60794A 4 | 64794 | |
| 4 | Steering shaft | 98230A 1 | 98230A1 | |
| 5 | Shift lever | 45518T 1 | 64518 | |
| 6 | Shift shaft bushing | 23-805041A 2 | 65036 | |
| 7 | 3/4" transom water hose | 32-41725 33 | 64725 | |
| 8 | U-joint bellows | 816431A 1 | 64431 | |
| 9 | Exhaust bellows w/clamps | 18654A 1 | 64654 | |
| - | Exhaust tube bellows | 78458A 1 | 64458 | |
| 10 | Drive mounting gasket kit | 27-94996Q 2 | 64996 | |
| 11 | Shift Cable end and screws | 43433 / 10-20518 / 43436 | 64433 | |
| 12 | Shift cable | 19543A10 | 64543 | |
| 13 | Shift cable bellows | 74639A 2 | 64639 | |
| 14 | Trim sender Kit | 805320A03 | 805320 | |
| 15 | Transom anode Button | 55989A 3 | 70989 | |
| 16 | Anode aluminum | 821631Q 1 | 70631 | |
| 16 | Anode magnesium, fresh water | 821631Q 1 | 70631M | |
| 17 | Deluxe shift cable Kit | 19543T 2 | 64543K | |
| 18 | Transom service Kit | 30-803097T 1 | 68399 | |
| 19 | Transom service Kit | 30-803097T 1 | 68397 | |
| not shown | Anode Kit aluminum | 88756Q 1 | 70756 | |
| not shown | Gimbal housing repair Kit; | - | GHR2 | |
