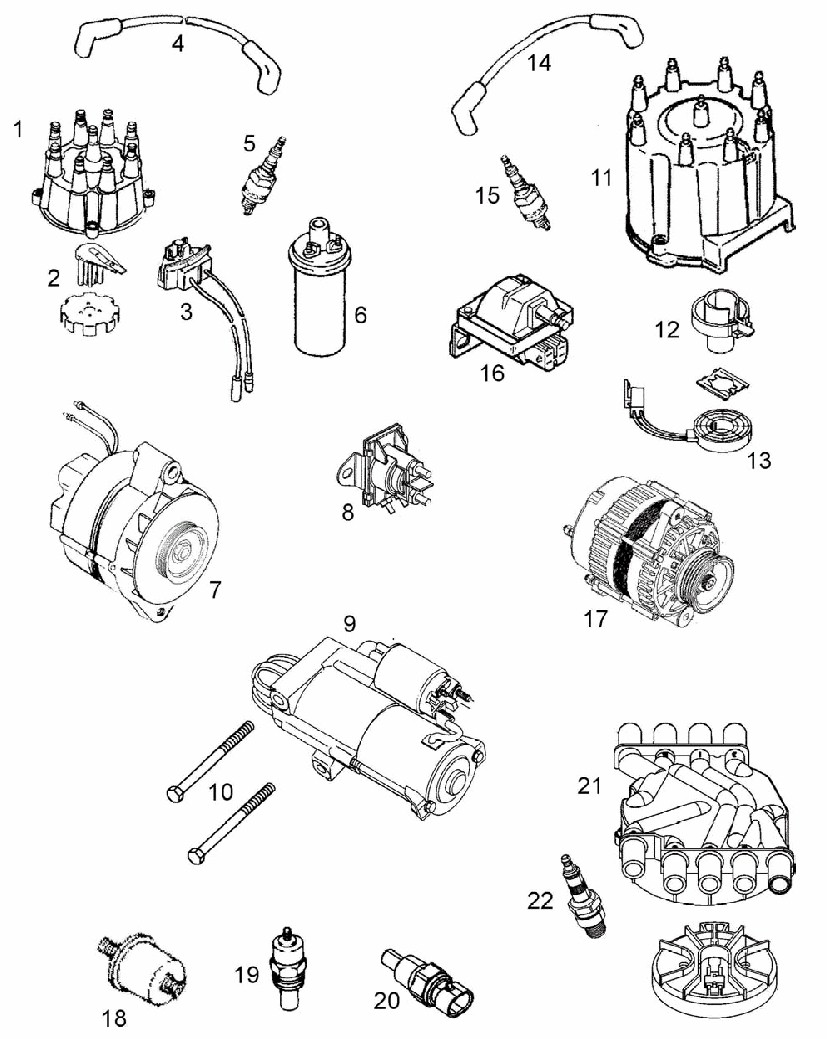

MerCruiser 5.0 / 5.7L 305/350 V8 Electrical System See reference picture below! |
||||
| Reference Number
see picture below |
Type | OE# | Part# |  |
| 1 | Distributor cap only, thunderbolt | 805759T 1 | 64759 | |
| 1 | Distributor cap and rotor Kit, thunderbolt | 805759Q 3 | 64759k | |
| 2 | Rotor and wheel | - | 64524 | |
| 3 | Sensor, thunderbolt | 87-861780A 2 | 18-5115 | |
| 4 | Ignition Wire set, thunderbolt | 84-816761Q 4 | 9-28001 | |
| 5 | Spark plug | 33-59571 | BR6FS | |
| 6 | Ignition coil | 392-806529A 1 | 64529 | |
| 7 | Mando Alternator assembly | 817119A 4 | 3144M | |
| 8 | Solenoid | 89-96158T | 5817 | |
| 9 | PMGR Starter assembly | 50-806964A 4 / 50-864340A 2 | 5399M | |
| 9 | PMGR Starter assembly, 1999 and up MPI models, high torque 1.6KW | - | 5398MHT | |
| 10 | Bolt Kit, 2 long | - | MBK450 | |
| 11 | Distributor cap and rotor Kit, DELCO EST | 808483Q 1 | 64483K | |
| 12 | Rotor | - | - | |
| 13 | Pickup coil sensor, Delco EST | 811639T | 63350 | |
| 14 | ignitiong Wire set, delco HEI | 84-816608Q82 | 9-28011 | |
| 15 | Spark plug, Long Reach | 3-816336 | BPR6EFS | |
| 16 | Ignition coil, Delco HEI | 817378 | 63756 | |
| 17 | Alternator assembly, 65mm pulley Delco 12V 70amp | 862031T 1 | 3204M | |
| 17 | Alternator assembly, Delco 12 V 70 amp 50, Serpentine pulley | 863077T | 20815 | |
| 18 | Oil pressure sender | 815425T | 65899 | |
| 19 | Temp sender, 3/8" NPT | 97257A 1 | 64257 | |
| 19 | Temp sender 1/2 NPT | - | 64258 | |
| 20 | Temp sender | 805218T | 63752 | |
| 21 | V8 vortec cap and rotor Kit | 884792 & 884790 | 63091 | |
| 22 | Spark plug AC platinum | 33-884019 | 41-932 | |
| Not shown | Coil Wire only, thunderbolt Ignition | - | 9-28100 | |
| Not shown | Coil Wire only, Delco Ignition | - | 9-28101 | |
| Not shown | Full size starter assemble, for PMGR equvialent order 5399M | 50-12177A2 | 5323M | |
| Not shown | PMGR Starter, top Rear mount for inboard and skit models | 50-808011A4 | 5400ML | |
| Not shown | Rotor and wheel, thunderbolt | - | 64524 | |
| Not shown | AC spark plug | - | MR43LTS | |
