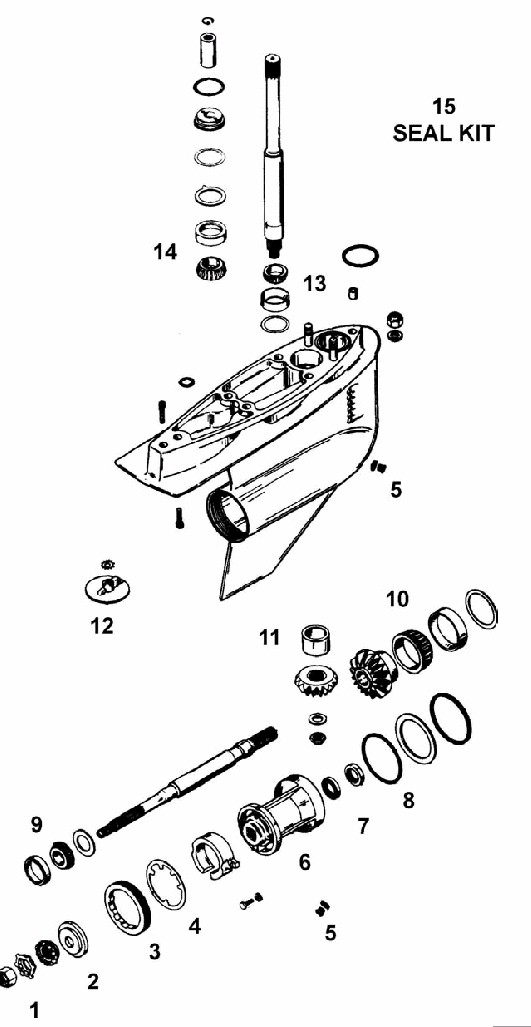

MerCruiser Bravo I II III Lower Gearcase See reference picture below! |
||||
| Reference Number
see chart below |
Type | OE# | Part# |  |
| 1 | Prop Nut Kit, Bravo I | 11-52707AQ 1 | 65707 | |
| 2 | Prop thrust washer, Bravo I | 12-835467 1 | 4220 | |
| 3 | Carrier retainer nut, Bravo I | 79448 | 3751 | |
| 4 | Tab washer, small. Use with carrier casting #73020C 1, Bravo I | 14-18323 | 2298 | |
| 4 | Tab washer, large. Use with carrier casting #73020C , Bravo I | 14-79447 | 2299 | |
| 5 | Magneteic drain screw, Bravo I II III | 22-67892A 1 | 64892 | |
|
not shown |
Drain / fill screw gasket 10 pack, Bravo |
27-19183 3 | 64183 | |
| 7 | Prop shaft seal, 2 required, Bravo I | 26-76868 | 238 | |
| 8 | Bearing carrier o-ring, Bravo I | 25-31534 | 217 | |
| 9 | Rear prop shaft Bearing, Bravo I | 31-66668A 1 | 18-1103 | |
| 10 | Tapered roller Bearing, Bravo I & III | 31-86752A 1 | 18-1130 | |
| 11 | Pinion Bearing, (not used with housing casting #1641-8293C Early bravo II) Bravo | 31-86754T | 18-1123 | |
| 12 | Aluminum anode, Bravo I II III | 76214Q 5 | 70214 | |
| 12 | Magnesium anode, freshwater, Bravo | 76214Q 6 | 70214M | |
| 13 | Lower drive shaft Bearing, Bravo I II III | 31-66668A 1 | 18-1103 | |
| 14 | Upper drive shaft Bearing, Bravo I II III | 31-86748A 1 | 18-1129 | |
| not shown |
Bearing Carrier Retainer Wrench, Bravo |
91-91039T | 18-9858 | |
| not shown |
Prop shaft Bearing, bravo II only |
31-54042T | 18-1180 | |
| not shown | Includes filler vent checkvalve and hose assembly | Gearcase Filler | 551-33GF | |
| not shown | Includes hose, clamp, shutoff valve and threaded tip and unthreaded tip for CDI and Stevens Fillers | Replacement Hose Assembly | 551-33HA | |
| not shown | Fits Johnson/ Evinrude and Mercury Outboard / Mariner | Threaded Nozzle | 551-33TN | |
| not shown | Fits all metric gear cases except Suzuki | Metric Adapter | 551-33M | |
| not shown | Fits Suzuki Gearcases | Metric Adapter | 551-33S | |
