(Outboardparts.com only supports the given parts with numbers.)


j Pinion bearing is interference fit. If loose, the case is not rebuildable.

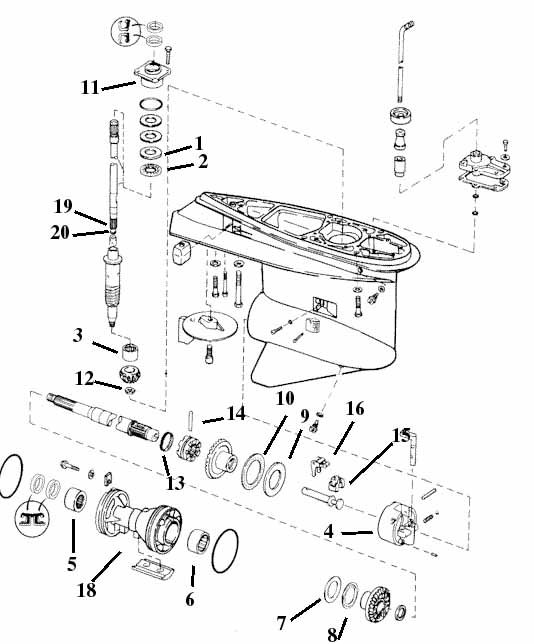

OMC V-6 LOWER UNIT (19 Spline Pinion)

Ref #

Description

Part #

OE #

Click here to view price, part, or cart.gif (2032 bytes)

1

Thrust Washer

2792

327656

2

Thrust Bearing

2773

387656

3

Pinion Bearing j

817

387817

4

Shift House Bearing (Bearing Only)

2754

N/A



Rear Carrier Bearing 1979-90

2126

387247

5

Rear Carrier Bearing 1991-95

4467

434467



Rear Carrier Bearing 1996 & Up

6752

436752

6

Forward Carrier Bearing

2752

382407

7

Thrust Washer

2789

314731

8

Thrust Bearing

2771

382408

9

Thrust Washer

2793

397566

10

Thrust Bearing

2774

389042

11

Upper Drive Bearingj

812

N/A

12

Pinion Nut

31-4730

314730

13

Clutch Dog Spring

2787

324369

14

Clutch Dog Pin

448

313448

15

Cradle

4163

334163

16

Lever

2938

322938

17

Gear Case Seal Kit

2623

439141

18

Bearing Carrier 1-1/4" Prop Shaft

363

5000363

18

Bearing Carrier 1-3/16" Prop Shaft

8039

438039

19

Retainer

504

338504

20

Pin

538

311538

21

Washer

6565

336565

-

 Upper Bearing Cap Assembly 9476 439476
