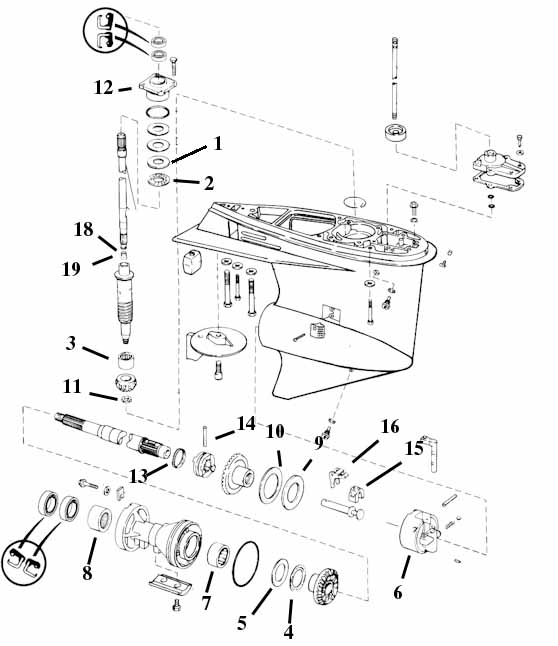

OMC V-4 LOWER UNIT (6 Spline Pinion)

REF #

Description

Part #

OE #

Click here to view price, part, or cart.gif (2032 bytes)

1

Thrust Washer

2792

327656

2

Thrust Bearing

2773

387656

3

Pinion Bearing

2753

384195

4

Rear Thrust Bearing

2771

382408

5

Bear Thrust Washer

2789

314731

6

Shift House Bearing (Bearing Only)

2752

382407

7

Forward Carrier Bearing

2758

378504

8

Rear Carrier Bearing

2752

382407

9

Forward Thrust Washer

2791

324766

10

Forward Thrust Bearing

2777

385043

11

Pinion Nut

31-4730

314730

12

Upper Drive Bearingj

812

N/A

13

Clutch Dog Spring

2787

324369

14

Clutch Dog Pin

448

313448

15

Cradle

4163

334163

16

Lever

2938

322938

17

Gear Case Seal Kit

2623

439141

18

Retainer

504

338504

19

Pin

538

311538

-

 Upper Bearing Cap Assembly 9476 439476
