Mercury Outboard Trim & Tilt Applications

Click on the part number to see individual COLOR photos or;
Click here to see them all at once. (SLOW LOADING)

HP

Beginning serial number or year

OE#

Notes (photo)

 Part #

View Price or:


Some outboard applications with pump & reservoir mounted inside boat.  Can be used for jack plates and some trim tab applications 88183A12, 14336A8 Complete pump with stainless steel bracket, solenoids, cables, junction block & hardware  T1088MSK

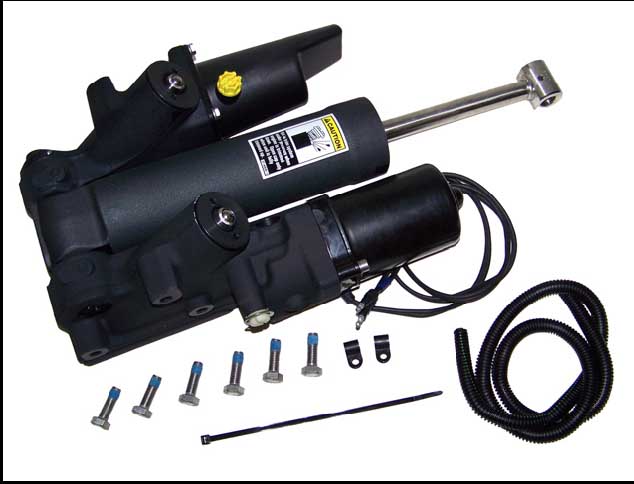

Trim system complete,  Mercury 225 Pro XS 3.0L DFI and many others  3 ram system.  855998A05, 855998A09, 855998A10,  855998A11, 99659A22, 818186A6, 826729A6,   Complete trim assembly 855998


225 - 275 HP outboard - replaces 823653A5, 92459A4 Complete Pump; late model Mercury Outboard using Oildyne Pump T1080M

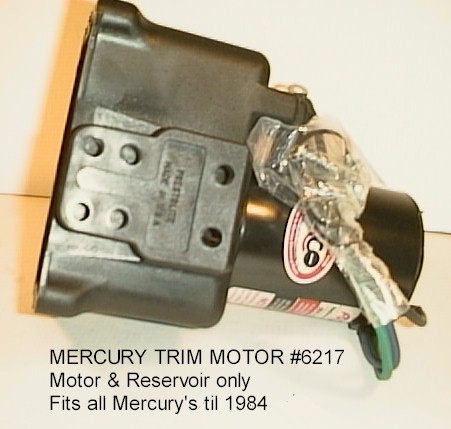

All Mercury outboards through 1980 with internal motor and reservoir.

-

   89885A-1, ERH4102,  ERH4102, ERH4102, 854346-4, 67914A2, 76395a2, 76395A2, 76395A5, 88475A5, 92975a2, 92975A28, 92975A6, 93247A4, 93247A7  Late model, lower unit with single ram, 3 wire with Allen bolts. 6217


***note***   tr217 is a brush Kit TR217

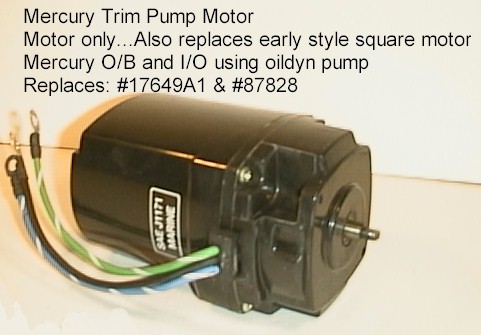

      -  -    17649A1

87828

O/B and I/O using Oildyne pump. Replaces early style square motor. Motor only 6218

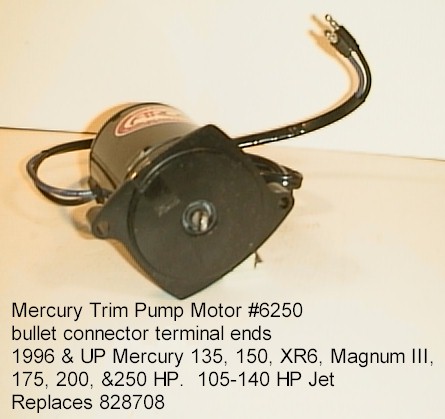

135,150, XR6, Mag III, 175, 200, 250,105- 140 Jet OG201875-up

1996-up

828708 2 wire bullet connector terminal ends 1996 & later.

6250

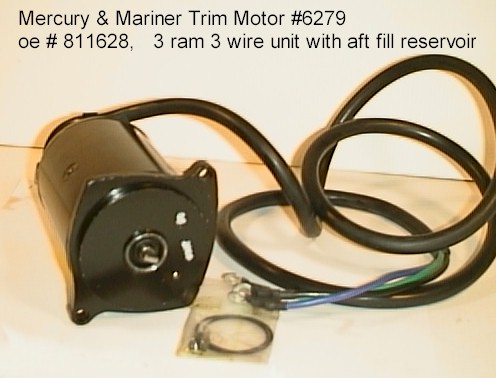

12 V motor Mercury outboard 1993-95 811628 3 ram, 3 wire trim unit with aft fill reservoir. 6279




  (Most often Ordered)   Tip: This is the one when you are told that you need to buy the entire tilt assembly because the motor is no longer produced.  Retooled  motor and pump . It is better than the original!!!! 1984-91 99186, 99186-1 Replaces  Mercury outboard cartridge pump assemblies with the side fill reservoir. motor & cartridge pump



6278

Mercury Outboard Trim Pump

- - 84-826802 a4 Wiring harness only. Converts 2 wire trim motors to 3 wire applications (included with 6250-1) 8268


Late model trim relay - 828151 - 151


- 25-50 HP replaces 827675A1 Motor only 6255

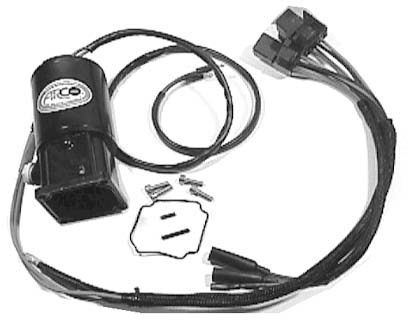

Older single ram, 3 wire, square or round motor. - - - 6276-1

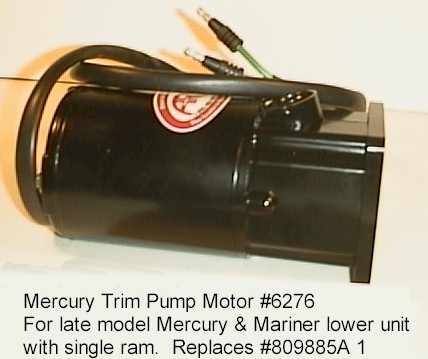

Late model Mercury outboard & Mariner      30-jet; 30HP (4 stroke); 35, 40HP (2,3,4, cylinder.) ; 40Hp (4-Stroke, Bigfoot); 45HP (4-Stroke, Bigfoot, Bodensee); 50HP (3 cylinder.); 50HP (4-Stroke, Bigfoot); 65HP-Jet; 75HP (3 cylinder.); 75HP (4-Stroke); 80HP-Jet;   90HP (3cyl.); 90HP (4-Stroke); 100HP (4 cylinder.); 115HP & 125HP (4 cylinder.).

          ( 2 different manufacturers of the same motor. )

- OE Numbers: 818903A1; 819762A4-A7; 819479A1; 819480A1; 81977A8-A9; 822870A1; 830250A3-T3; 832021A1-T4-A2-T2; 855654A1-T2; 19217A1-A5; 811674; 809885A1-T2; 813445; 811699; 809885A-1 Late model Mercury and Mariner lower unit with a single ram.

2 Wire 809885A-1

6276



Late model single ram, 2 wire motor. PT496 same as above but different manufacturer.

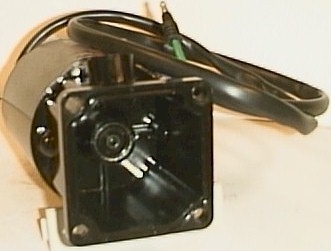

Older single ram, 3 wire, square or round motor. PT495


-

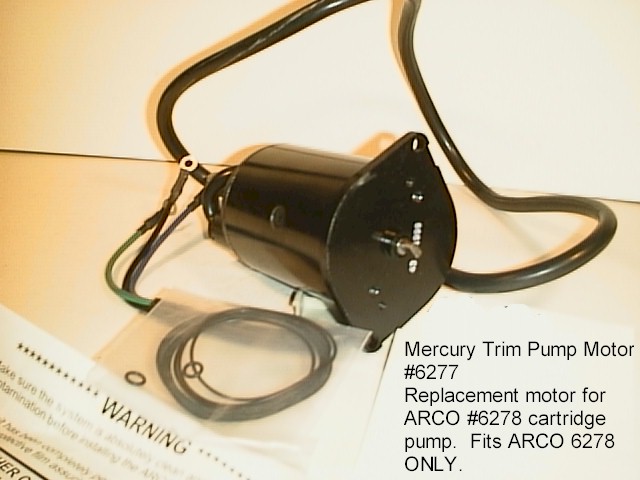

- - Replacement motor for ARCO 6278 cartridge pump. Fits ARCO 6278 only. 6277

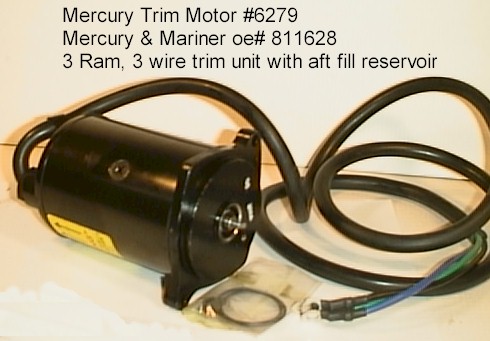

Mercury/ Mariner - 811628 3 ram, 3 wire trim unit with aft fill reservoir. 6279
