Chrysler or Force Outboard Motor Starter Page

Electrical System Relays


Under the first chart is another chart with starters listed by horsepower, year and serial number range.

We did this because so many people are using phones and tablets

Scroll down to see it!



Chrysler or Force Outboard Motor Starters. Click on View/Order to see a better picture.
Picture Part Type Part # Forcei1.jpg (3670 bytes)
- Flywheel Puller 201

Universal Starter Brush Holding Tool Universal Starter Brush Holding Tool SR107

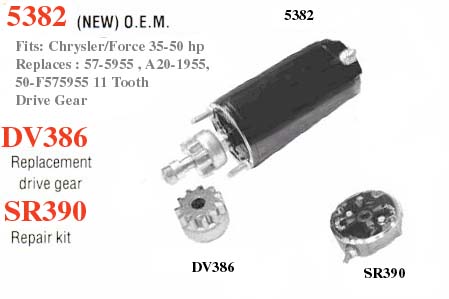

5382 Outboard Starter Motor 35-50hp Chysler Arco Starter 5382

Drive Gear DV386

Repair Kit SR390

5551 Chrysler / Force 25 - 35 hp outboard starter Motor , large 10 tooth drive gear

Fits Chrysler / Force Outboard Motor 25-35 HP; OE: 51-4955. Large ten tooth drive gear.

 Arco Starter 5551

Drive Gear DV551

Repair Kit SR372

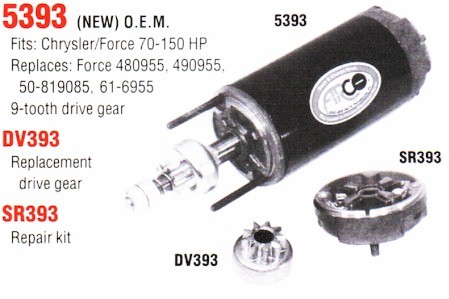

5393 Chrysler / Force 70 - 125 hp outboard starter starter Motor 9-tooth drive gear Arco Starter 5393


Drive Gear DV393

Repair Kit SR393

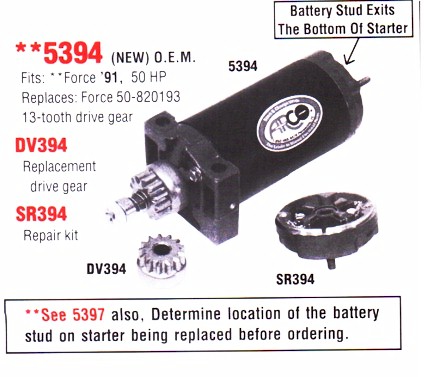

5394 outboard Starter Motor w/ 13 tooth drive gear for Chrysler / Force 1991 50hp, Mercury sport jet 40-50hp. Arco Starter 5394


Drive Gear DV 394

Repair Kit SR394

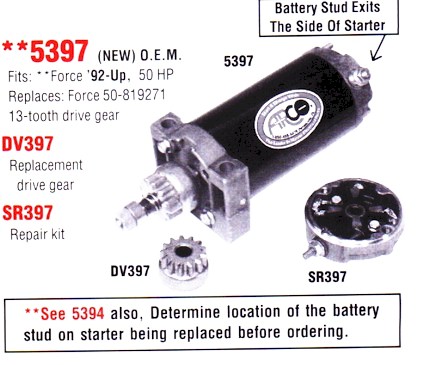

5397 Chrysler / Force 1992 & up 50 hp outboard starter Motor . 13-tooth drive gear Arco Starter 5397


Drive Gear DV397

Repair Kit SR397

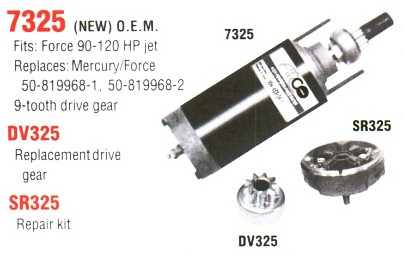

7325 Outboard Starter Motor w/ 9 tooth drive gear for Mercury sport jet 90-120hp & Force 3cyl & 4Cylinder Arco Starter 7325

JET BOAT STARTER
Drive Gear DV325

Repair Kit SR325


The O/B starter drives are rubber cushioned  drives. If any oil gets between the compression nut and the rubber grip Surface, drive failure will result.
donotspray2.jpg (18441 bytes) Always remove the drive assembly before applying lube to the shaft. Only apply a thin film of water resistant grease to the shaft. Make sure to wipe off any excess.
HP Year Model Part # Forcei1.jpg (3670 bytes)
25 1983  -1984 Electric Start 10 tooth drive gear 5551

35 1974  -1977 Electric Start 10 tooth drive gear 5551

35 1978 W/CD - Alternator 10 tooth drive gear 5551

35 1987 -1991 All Models 10 tooth drive gear 5551

40 1992 -1995 1992-C 13-tooth drive gear 5394

40 1992 -1995 0E000001 -0E138599

13-tooth drive gear

 5394

40 1996 -1997  0E138600 - 0E287999

13-tooth drive gear

 5394

40 1998 -1999 0E28800 -0E369299 13-tooth drive gear 5394

45 1974 -1978 Magna Power NLA
45 1976 -1984  W/Points NLA
50  1981 - 1983 W/Points NLA
50 1984 -87  A, C 11 tooth drive gear  5382

50 1987 B 11 tooth drive gear 5382

50 1988 A, B, C, D 11 tooth drive gear 5382

50 1989 -1992 All Models 11 tooth drive gear 5382

50 1992 0E000001 -0E009499  5394

50  1992 -1995 0E009500 -0E138599 5394

50 1996 -1997 0E138600 -0E283999 5394

55 1981 -1983 All Models NLA
60 1984 -1985 All Models NLA
70 1979 -1980 Magna Power  9-tooth drive gear  5393

70 1991 -1992 E000001 -E009499 9-tooth drive gear 5393

70 1991 -1992 E000001 -E009499 9-tooth drive gear 5393

70  1993 -1994 E009500 -E093699 5393

70 1993 -1994 E009500 -E093699 9-tooth drive gear 5393

70 1994 -1995 E093700 -E138599 9-tooth drive gear 5393

70 1994 -1995 E093700 -E138599 9-tooth drive gear 5393

75 1975 -1984 Magna Power 9-tooth drive gear  5393

75 1996 -1999 E138600 -0E369299 9-tooth drive gear 5393

75 1996 -1999 E138600 -0E369299 9-tooth drive gear 5393

80 1977 -1984  Magna Power 9-tooth drive gear  5393

80 1983 -1984  W/CD- Alternator 9-tooth drive gear   5393

85 1983-1985 All Models  NLA
85 1986 A & L 9-tooth drive gear 5393

85 1986 B, C, M & N 9-tooth drive gear 5393

85  1987 -1988 All Models 9-tooth drive gear 5393

85  1989 B, C, D, E, F, G, H 9-tooth drive gear 5393

85 1989 L Drive 9-tooth drive gear 5393

90 1974 -1977 Magna Power 9-tooth drive gear  5393

90 1983 -1984 W/CD -Alternator 9-tooth drive gear   5393

90 1990  All Models 9-tooth drive gear 5393

90 1990 L Drive A, C 9-tooth drive gear 5393

90 1991  L Drive B & D 9-tooth drive gear 5393

90  1991  A, C  D, E D 9-tooth drive gear 5393

90  1991  000001 -E009499 9-tooth drive gear  5393

90  1991   E009500 -E039023 9-tooth drive gear 9-tooth drive gear 9-tooth drive gear 5393

90  1992 -1994 E039024 -E093699 9-tooth drive gear 5393

90  1995 E093700 -E138599 9-tooth drive gear 5393

90  1996 -1999  E138600 -E369299 9-tooth drive gear 5393

100 1979 -1984 Magna Power 9-tooth drive gear  5393

105 1976 HB /BF /HF 9-tooth drive gear  5393

105 1977 -1978  Magna Power 9-tooth drive gear  5393

105 1982 -1983  Magna Power 9-tooth drive gear  5393

115 1977 -1982  Magna Power  9-tooth drive gear  5393

115 1983 -1984 W/CD- Alternator 9-tooth drive gear  5393

120 1976 BF/HF 9-tooth drive gear  5393

120 1977  Magna Power 9-tooth drive gear  5393

120 1990 -1991  E000001 -E0006550 9-tooth drive gear 5393

120  1992 -1995  E006551 -E138599 5393

120 1996 -1999 E138600 -E369299 9-tooth drive gear 5393

120  1990  L Drive A, B & C 5393

120 1991 -92  L DriveB & D 9-tooth drive gear 5393

125  1981 -82 W/CD -Alternator 9-tooth drive gear  5393

125 1983 -84 All Models 9-tooth drive gear   5393

125  1985 All Models 9-tooth drive gear  5393

125 1986  A,  B 9-tooth drive gear 5393

125 1987 -88 A,  B 9-tooth drive gear 5393

125 1988  C 9-tooth drive gear 5393

125  1989 A, B, C, D, E  9-tooth drive gear 5393

125 1989 L Drive A & B 9-tooth drive gear 5393

135  1976 BF/HF 9-tooth drive gear  5393

135  1977 Magna Power 9-tooth drive gear  5393

140  1978 -1984 Magna Power 9-tooth drive gear  5393

150 1989 -1990  89A & 90C  5393

150 1990 -1991 90D & 91A 9-tooth drive gear  5393

150 1991 -1992 91 B/C/D/F /J -1992A/C 9-tooth drive gear 5393

150 1991 -1992  E000001 -E009499 9-tooth drive gear 5393
