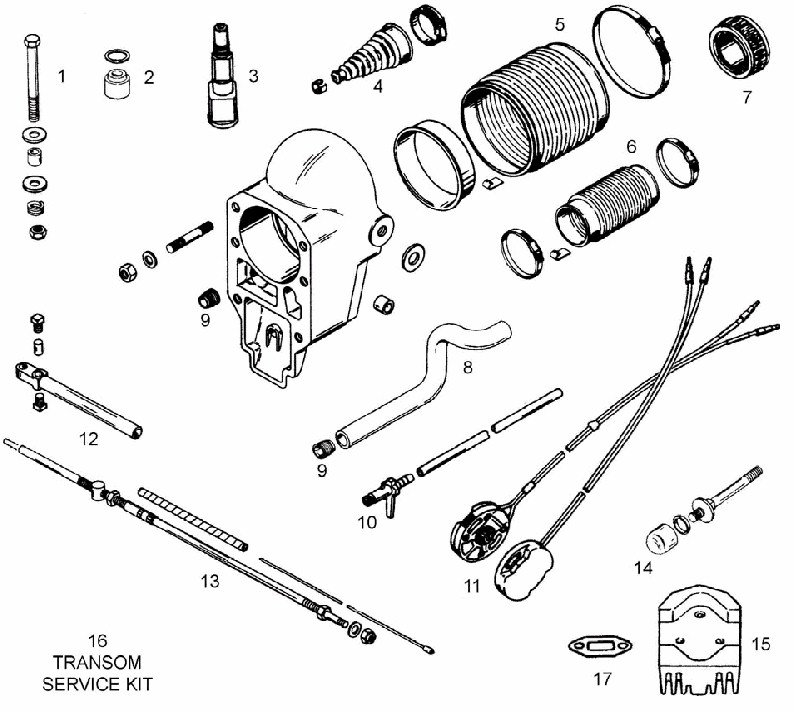

MerCruiser Bravo I II III Bell housing and Transom See reference picture below! |
||||
| Reference Number
see chart below |
Type | OE# | Part# | Click here to view
product, price, or  |
| 1 | Rear mount bolt Kit | 814819A 2 | 18-2141 | |
| 2 | Rear mount | 99297A 1 | 65297 | |
| 3 | Steering shaft | 98230A 1 | 98230A1 | |
| 4 | Shift cable bellows | 74639A 2 | 64639 | |
| 5 | U-joint bellows w/clamps | 86840A 3 | 64840 | |
| 6 | Exhaust bellows w/clamps | 18654A 1 | 64654 | |
| not shown | Exhaust tube bellows | 78458A 1 | 64458 | |
| 7 | Gimbal Bearing | 30-60794A 4 | 64794 | |
| 8 | Transom water hose | 32-43437 | 64437 | |
| 9 | Insert for water hose | 41674 | 41674 | |
| 10 | Speedo adapter | 815303 | 815303 | |
| 11 | Trim sender Kit | 805320A03 | 805320 | |
| 12 | Shift Cable end and screws | 43433 / 10-20518 / 43436 | 64433 | |
| 13 | Replacement cable | 815471A 6 | 64471 | |
| 13 | Shift cable Kit | 815471T 1 | 64471k | |
| 14 | Transom anode Button | 55989A 3 | 70989 | |
| 15 | Anode aluminum | 821631Q 1 | 70631 | |
| 15 | Anode magnesium, fresh water | 821631Q 1 | 70631M | |
| 16 | Transom service Kit | 30-803100T 1 | 68396 | |
| 17 | Gasket | - | 397 | |
| not shown | Gimbal housing repair Kit; | - | GHR3 | |
